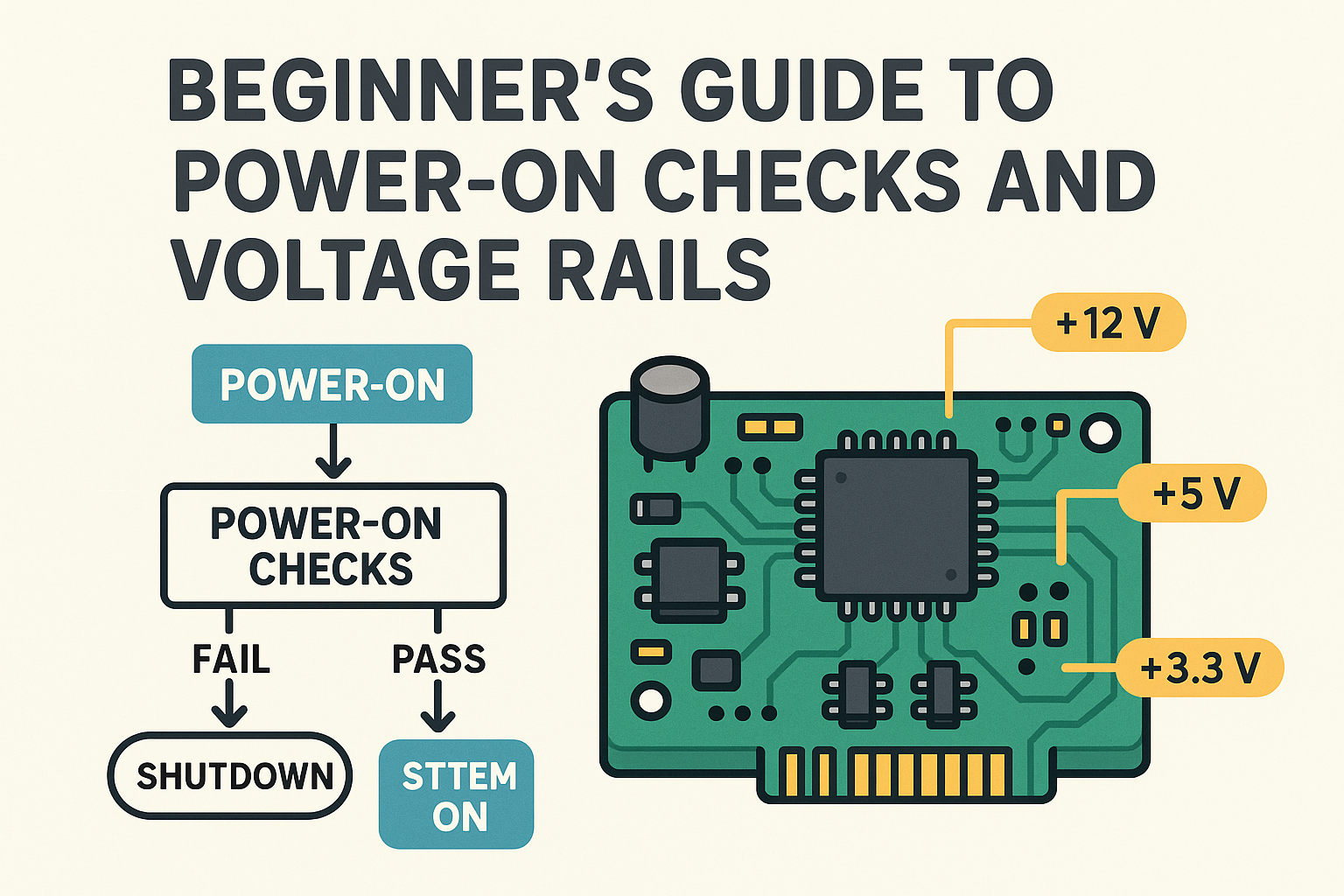

Power-On Checks and Voltage Rails Beginner’s Guide 2025 : When you build or work with electronic circuits or embedded systems, one of the first things to understand is how to safely power up your system and verify that it’s working correctly. That’s where Power-On Checks and Voltage Rails come into play.

This article will guide you step-by-step through the concepts, checks, and best practices — no prior experience needed!

What Are Voltage Rails?

Simple Definition:

Voltage rails are the different voltage levels used in a circuit to power various components. They act like electrical highways, delivering the right amount of voltage where it’s needed.

Common Voltage Rails:

Voltage Rail	Typical Use
3.3V	Microcontrollers, sensors
5V	USB devices, older microcontrollers
12V	Motors, relays, some displays
1.8V / 1.2V	CPUs, RAM, SoCs (in modern systems)

Think of each rail like a water pipe with a different pressure level. Some parts need more pressure (voltage), while others only need a trickle.

Why Power-On Checks Matter

Power-On Checks are like a health checkup for your hardware. The goal is to catch issues early before components get damaged or behave unpredictably.

Imagine plugging in a device and:

It doesn’t turn on.
It heats up.
It resets frequently.

These symptoms could be caused by power problems—a short circuit, wrong voltage, or unstable power supply. That’s why checking your voltage rails and power sequence is crucial.

Step-by-Step Power-On Checks

Here’s a beginner-friendly checklist to follow when powering up your hardware:

1. Visual Inspection

Before even connecting power:

Look for solder bridges or loose wires.
Ensure polarity is correct (especially on capacitors and diodes).
Check IC orientation (pin 1 should match the marking on the PCB).

2. Continuity Test (Pre-Power)

Use a multimeter in continuity mode to:

Test power and ground lines are not shorted.
Ensure all ground points are connected.
Check that critical components like regulators or microcontrollers are not directly shorted.

💡 Tip: A short between VCC and GND is a red flag. Fix it before applying power!

3. Apply Power through a Current-Limited Supply

Use a bench power supply with current limiting enabled (start with ~100–300 mA limit).

If current spikes immediately: There might be a short.
If current stays low and stable: Proceed to check voltages.

4. Check All Voltage Rails

Use a multimeter to verify each rail is within expected range. For example:

Expected Rail	Acceptable Range
3.3V	3.2V to 3.4V
5V	4.8V to 5.2V
1.8V	1.75V to 1.85V

Small deviations are okay, but large mismatches can damage parts or cause instability.

5. Observe Power-On Sequence (Advanced)

Some systems need a specific order of powering components (e.g., core voltage before IO voltage). This is common in CPUs, FPGAs, and SoCs.

Use an oscilloscope or power sequence controller (if available) to verify:

Each rail turns on at the correct time.
There is proper delay between rails.

Not all projects need this, but it’s critical in complex boards.

6. Check for Heat and Behavior

After powering up:

Feel (carefully) for any hot components.
Watch LEDs or displays for signs of life.
Use UART or debug port to check for boot messages.

Tools You’ll Need

Tool	Purpose
Multimeter	Measure voltage, continuity, resistance
Bench Power Supply	Controlled and safe power source
Oscilloscope (optional)	Visualize voltage behavior over time
IR Thermometer / Finger	Check for overheating components

Bonus: Tips for Clean Power Design

Use decoupling capacitors near each IC (usually 0.1uF).
Keep power and ground traces wide and short.
Use ferrite beads to reduce high-frequency noise.
Add test points on each rail for easy voltage checks.

Summary

Power-on checks and voltage rails may sound intimidating, but once you break them down, they’re just common-sense safety steps. Here’s what to remember:

✅ Check visually and with a multimeter before applying power
✅ Use current-limited power supply to prevent damage
✅ Verify each voltage rail is in the expected range
✅ Watch for signs of short circuits or overheating
✅ Understand power sequencing in complex systems

Clock Signal Verification

In the world of embedded systems and digital electronics, the clock signal is the heartbeat of the system. Just like humans rely on a regular pulse to stay alive, microcontrollers, processors, and other digital ICs rely on clock pulses to stay synchronized and perform their tasks.

This guide will walk you through everything you need to know about Clock Signal Verification—what it is, why it matters, and how to perform it effectively.

What is a Clock Signal?

A clock signal is a periodic square wave that tells digital devices when to perform an operation. It defines the timing for data transfer, instruction execution, and communication.

Typical sources of clock signals include:

Crystal oscillators (e.g., 8 MHz, 16 MHz)
MEMS oscillators
Internal PLLs (Phase Locked Loops)
External clock generators

Why Clock Signal Verification is Important

Imagine this:

Your microcontroller isn’t booting.
Your sensor interface is glitchy.
Your processor outputs junk over UART.

Clock issues could be the hidden culprit.

Verifying the clock ensures:

Your main system clock is running.
All peripherals (UART, SPI, I2C, etc.) are receiving the correct timing.
The timing constraints of high-speed interfaces (like DDR, USB) are being met.

When to Verify Clock Signals

You should check clock signals during:

Board bring-up (initial power-on testing of a new PCB)
After reflow soldering or manual assembly
When debugging issues like:
- Unresponsive MCUs
- Communication protocol failures
- Random resets or boot failures

Tools for Clock Signal Verification

Tool	Purpose
Oscilloscope	To visualize the clock waveform
Logic Analyzer	To confirm clock presence and frequency
Multimeter (limited use)	To check voltage on oscillator pins
JTAG/SWD Interface	For register-level clock verification
Oscillator Datasheets	To know expected behavior (voltage, frequency, tolerance)

Step-by-Step Clock Signal Verification

1. Visual Inspection First

Ensure the crystal oscillator is properly soldered.
Check for orientation (some crystals have polarity).
Verify loading capacitors are placed correctly and values match datasheet.

2. Check Power to Oscillator

Measure VDD on the oscillator chip or pins using a multimeter.
Check for correct voltage rail (e.g., 3.3V or 1.8V).
If using an active oscillator (MEMS or clock IC), it needs power!

3. Use an Oscilloscope to Probe Clock Pins

Probe the output pin of the crystal oscillator or clock generator.
Set your oscilloscope to a time base that fits your expected frequency.
Look for a stable square wave or sine wave, depending on the oscillator type.

For example:

Expected Clock	What You Should See
16 MHz crystal	16 MHz square/sine wave
100 MHz MEMS oscillator	100 MHz square wave
32.768 kHz RTC crystal	Low frequency sine wave (careful, hard to probe due to low amplitude)

🔍 Tip: Small crystals (like 32.768 kHz) can be difficult to probe directly; use test points or buffered outputs.

4. Measure Frequency and Duty Cycle

On the oscilloscope:

Use the frequency measurement tool.
Measure duty cycle (typically ~50% for square waves).
Check peak-to-peak voltage to ensure it’s within the logic level range.

🧠 A 3.3V logic clock should swing from 0V to ~3.3V.

5. Check Clock Enable Pins and Register Settings

Some MCUs and SoCs require:

A software register to enable clocks.
An external enable pin (CLK_EN, OE).

Using a debug probe or serial output, verify if:

Clock configuration registers are set correctly.
PLLs are locked and active.
Clock gates are open (not disabled for power saving).

6. Verify Internal Clock Output (If Available)

Some MCUs (e.g., STM32, ESP32) allow routing internal clocks to a GPIO pin for measurement:

Use this feature to measure internal PLL or system clock output externally.
Verify that internal configuration (multipliers, dividers) match expected system frequency.

Common Clock Issues

Problem	Possible Cause
No clock output	Crystal not oscillating, wrong load caps, missing power
Incorrect frequency	Wrong PLL settings, damaged oscillator
No MCU boot	Clock not reaching CPU core
Peripheral errors	Missing or misconfigured peripheral clock
Clock jitter/noise	Poor PCB layout, no ground shielding

Tips for Reliable Clock Design

Use ground planes under clock traces.
Keep clock traces short and matched (for differential pairs).
Avoid routing clock signals near noisy digital lines.
Add series resistors (22–33Ω) if ringing is observed.
Use decoupling capacitors near oscillators.

Summary

Clock signal verification is a fundamental part of bringing up and maintaining embedded hardware. A missing or misbehaving clock can halt your entire system — and it’s often overlooked.

Here’s your quick checklist:

✅ Visual inspection
✅ Measure power to the oscillator
✅ Probe clock signal with an oscilloscope
✅ Check frequency, duty cycle, and voltage swing
✅ Verify enable pins and internal configuration

Reset Circuit Validation

In embedded systems, a reset is like a clean slate—it initializes the system to a known state, clearing registers, restarting firmware, and ensuring predictable startup. Just like rebooting your PC fixes odd behavior, reset circuits ensure embedded hardware starts properly and safely.

But how do you make sure the reset circuit is working correctly? That’s where Reset Circuit Validation comes in.

This article will guide you through what a reset circuit is, why it matters, and how to validate it thoroughly using beginner-friendly steps.

What is a Reset Circuit?

A reset circuit is a hardware block that generates a signal (usually active-low, called RESET#) to restart the system or bring it to a known state. It’s often connected to:

Microcontrollers (MCUs)
Microprocessors (MPUs)
FPGAs
Power Management ICs (PMICs)

Types of Reset Sources:

Power-On Reset (POR) – Triggered when power is first applied
Manual Reset – Triggered by pressing a reset button
Brown-Out Reset (BOR) – Triggered by low voltage conditions
Watchdog Reset – Triggered by software timeout
External Reset ICs – Dedicated chips like TPS3823, ADM809, etc.

Why Validate the Reset Circuit?

An unreliable reset circuit can lead to:

MCU not starting
Unpredictable behavior during power-on
Boot looping
Flash corruption

Validating the reset ensures:

The system starts cleanly
All devices come out of reset in proper sequence
There’s enough hold time for the system to stabilize

Components in a Reset Circuit

Component	Purpose
Pull-up resistor	Pulls RESET# line high when not active
Reset IC	Generates reset pulse after power is stable
Capacitor	Delays reset signal (RC delay)
Push button	Allows manual reset
Open-drain drivers	Allow multiple devices to pull RESET# low

How to Perform Reset Circuit Validation – Step-by-Step

Step 1: Visual Inspection

Check for missing or misaligned components (especially reset ICs, buttons).
Ensure no solder bridges between reset line and ground or VCC.
Verify pull-up resistor value (typically 10kΩ).

Step 2: Check Default State on Power-Up

Power on the board.
Use a multimeter or oscilloscope to probe the RESET# line.
Expected behavior:
- RESET# stays LOW for a short duration (e.g., 100ms) on power-up.
- Then goes HIGH and stays there (allowing MCU to run).

Step 3: Measure Reset Pulse Timing

Using an oscilloscope, check:

Duration of reset pulse (T_reset)
It should meet MCU datasheet requirement (e.g., >40ms)
Rise time of the signal (should be fast and clean)

If the pulse is too short or noisy, MCU may not boot.

Step 4: Test Manual Reset Button

Press and hold the reset button.
Observe RESET# go LOW.
Release the button — RESET# should return HIGH cleanly.

Verify debounce behavior:

Add a capacitor (~0.1µF) across the button if signal is noisy.
Check for proper mechanical contact.

Step 5: Validate Voltage Thresholds

If using a reset IC, check:

Supply voltage (Vcc) to the IC is within its operating range.
Output toggles correctly when Vcc drops below threshold.

Use a variable power supply to simulate brown-out and verify the IC asserts RESET# below, say, 2.9V if using TPS3823-33.

Step 6: Simulate Watchdog Timeout (If Used)

If your system includes a watchdog:

Avoid “feeding” the watchdog in software.
Ensure the reset line toggles after the timeout.
Measure the duration of the watchdog reset pulse.

Step 7: Check System Behavior After Reset

After each reset:

MCU or processor should boot correctly.
Peripherals should reinitialize.
Debug interface (like SWD/JTAG) should remain functional.

Use serial logs, LEDs, or debug probes to confirm proper behavior.

Common Reset Circuit Issues and Fixes

Issue	Possible Cause	Fix
MCU doesn’t boot	No reset pulse, stuck low	Check reset IC or button
Boot loops	Reset pulse too short	Increase capacitor or fix RC delay
Random resets	Noisy reset line	Add filtering capacitor
Reset not asserted on brown-out	Wrong threshold	Choose correct reset IC
Shared reset doesn’t work	Improper open-drain configuration	Add buffer or diode isolation

Tips for Reliable Reset Design

Use RC delay circuits for simple systems.
Prefer dedicated reset supervisors for precise control.
Isolate noisy components from the reset line.
Keep trace lengths short, especially for manual reset lines.
Add test points or headers for debug access.

Summary

Reset circuit validation is a small but crucial step during embedded hardware bring-up. A poorly designed or untested reset path can cause hours of frustrating debug time.

Quick Checklist:

Check pull-ups and reset IC orientation
Probe RESET# line during power-on
Validate reset timing with oscilloscope
Test manual and watchdog resets
Ensure system boots cleanly after reset

Boot Logs & Serial Debugging

When your embedded device starts up and you’re left staring at a silent board, one of your best friends is the serial debug port. It can speak volumes—literally—about what’s going right (or wrong). Understanding boot logs and how to use serial debugging can help you bring up hardware, debug early firmware issues, and even fix bootloader problems.

In this guide, we’ll walk you through what boot logs are, how to access them using a serial connection, how to interpret them, and how to troubleshoot issues step-by-step.

What Are Boot Logs?

Boot logs are the messages printed by a system (often via UART/serial port) as it powers up. These logs include:

Bootloader messages (e.g., U-Boot)
Kernel initialization (Linux/RTOS/other OS)
Driver loading
Application startup logs

Think of them as the system’s heartbeat—a real-time transcript of what it’s doing during boot.

What Is Serial Debugging?

Serial debugging is a method of communicating with your embedded board through a UART (Universal Asynchronous Receiver-Transmitter) interface. It’s commonly used to:

View boot logs
Send commands (e.g., via a terminal)
Interact with bootloaders or shells

Tools You Need

Tool	Purpose
USB-to-Serial Adapter (e.g., FTDI, CP2102)	Converts USB from your PC to UART
Serial Terminal Software (e.g., PuTTY, Tera Term, Minicom, screen)	View and send data
Wires or Jumpers	Connect TX, RX, and GND
Target Board	Embedded system with UART debug pins

Wiring – Connecting Your Serial Debug Port

Typical connections:

USB-to-Serial	Target Board
TXD	RX (receive pin)
RXD	TX (transmit pin)
GND	GND

❗ Never connect 5V or 3.3V unless required. Most UART debug uses 3.3V TTL logic levels.

How to Set Up Serial Communication

Connect hardware as shown above.
Plug USB-to-Serial into your PC.
Open your terminal software.
Select the correct COM port (Windows) or /dev/ttyUSB0 (Linux).
Use these typical serial settings:
- Baud Rate: 115200
- Data Bits: 8
- Parity: None
- Stop Bits: 1
- Flow Control: None

What Do Boot Logs Look Like?

Here’s a sample boot log from an embedded Linux board:

U-Boot 2023.04 (Apr 2024)

DRAM:  1 GiB
MMC:   mmc@7800000: 0
Loading Environment from MMC...
Booting Linux from mmc 0:1...
Starting kernel ...

[    0.000000] Linux version 5.10.0 (gcc version 9.3.0)
[    0.120000] CPU0: Booted secondary processor
[    1.000000] Mounting root filesystem
[    2.500000] Welcome to Embedded Linux!

How to Read Boot Logs – Common Stages

1. Bootloader Phase (U-Boot or Barebox)

Initializes RAM, MMC, environment
Loads the kernel from flash or SD card
Allows you to interrupt and modify boot (press a key like Esc or Space)

2. Kernel Phase

Hardware detection
Mounting file systems
Loading drivers

3. User Space Phase

Starting services (systemd/init)
Launching applications

Why Boot Logs Are Important

Boot logs help you:

Detect crash loops
Identify hardware failures (e.g., NAND, eMMC, SD not found)
Monitor driver loading issues
Debug kernel panics
Measure boot time

Common Boot Log Issues and What They Mean

Boot Log Message	Meaning	Fix
`Kernel panic - not syncing`	Kernel can’t continue	Check rootfs or kernel image
`MMC: no card present`	Storage device not found	Reseat SD card, check connections
`Failed to mount root fs`	Filesystem missing	Rebuild or reflash rootfs
`No console found`	Output device not set	Add `console=ttyS0` to bootargs

Serial Debugging in Action – Use Cases

Interrupt Bootloader
- Press key during countdown (e.g., Hit any key to stop autoboot)
- Use commands like: printenv boot load mmc 0:1 0x82000000 zImage
Log Application Errors
- Use printf() in C or cout in C++ to log debug messages
- Output will appear on serial terminal
Send Commands to Target
- Login to shell (root user)
- Run scripts, reboot, kill processes

Tips for Effective Serial Debugging

Always label TX/RX/GND pins on your board.
Add a pull-up resistor on RX if signal is unstable.
Check kernel bootargs in U-Boot: console=ttyS0,115200 root=/dev/mmcblk0p2
Use logging software (like screen -L or Putty log) to save logs.

Summary

What You Learned	Why It Matters
What boot logs are	To diagnose system boot behavior
How to wire and use serial	Essential for embedded debug
How to interpret logs	Helps catch early boot errors
Tools needed	USB-to-serial, terminal software
Common boot issues	To know where to fix problems

Flashing Bootloaders and Firmware

Flashing your embedded device for the first time? You might have heard terms like bootloader, firmware, flashing tools, and image files. Don’t worry — we’ll break it all down in simple terms, and show you how flashing works, why it’s needed, and how to do it step-by-step.

What Is Firmware?

Firmware is the low-level software that runs on your embedded device — it’s what controls the hardware and starts your application. Think of it as the brain of the device.

Examples of firmware:

An LED blinking program on an Arduino
An embedded Linux system booting on a Raspberry Pi
A motor control program in a washing machine

What Is a Bootloader?

A bootloader is a small program that runs before your main firmware. It helps with:

Initializing hardware (RAM, flash)
Loading firmware into memory
Supporting features like firmware update over USB, UART, or OTA

Some common bootloaders:

Bootloader	Used In
U-Boot	Linux-based embedded boards (BeagleBone, i.MX, etc.)
Grub	Desktop Linux
Arduino Bootloader	Arduino boards
DFU Bootloader	STM32, ESP32, etc.

What Does “Flashing” Mean?

Flashing means writing a binary file (bootloader or firmware) into non-volatile memory like flash or EEPROM on your microcontroller or embedded board. Once flashed, the firmware stays there even if power is removed.

What You Need to Flash

Here’s a basic setup checklist:

Tool/Component	Why It’s Needed
Binary File (.bin, .hex, .elf, .img)	The compiled firmware or bootloader
Flashing Tool (esptool, STM32CubeProgrammer, avrdude, etc.)	Sends the binary to the device
Serial or USB Interface	Connects your PC to the board
Power Supply	To power the target device
Jumper Wires or Buttons	For boot mode or reset control

Flashing: Step-by-Step Overview

Let’s break it into steps using a general example.

Step 1: Prepare the Binary File

Compile your project and get the output file, like:

main.hex or main.bin – firmware
u-boot.img – bootloader
firmware.elf – executable (used internally or for debugging)

Step 2: Set Boot Mode (if required)

Some microcontrollers require entering bootloader or flash mode before accepting new firmware. This is done by:

Holding a BOOT button while pressing RESET
Toggling jumpers (e.g., BOOT0/BOOT1 on STM32)
Using specific UART/USB commands

Step 3: Connect to PC

Use USB cable (if your board supports USB flashing)
Or USB-to-Serial adapter to connect to RX, TX, and GND

⚠️ Make sure your board has drivers installed (CP2102, CH340, FTDI, etc.)

Step 4: Use Flashing Tool

Here are some examples based on popular platforms:

Arduino

# Happens automatically when you click 'Upload' in Arduino IDE

ESP32 / ESP8266

esptool.py --chip esp32 --port /dev/ttyUSB0 write_flash 0x1000 firmware.bin

STM32 (using STM32CubeProgrammer)

Select the correct COM port or ST-Link
Load .bin or .hex file
Set address (usually 0x08000000)
Click “Start Programming”

BeagleBone / Raspberry Pi (for SD card images)

sudo dd if=linux_image.img of=/dev/sdX bs=4M status=progress

Replace /dev/sdX with your SD card path (⚠️ double-check it!)

Step 5: Verify Flashing

Some tools auto-verify. If not, you can:

Use verify option in the flashing tool
Boot the board and check serial logs
Blink an LED as a success indicator

Step 6: Reset and Boot

After flashing:

Press the RESET button, or
Power cycle the board

Now, the bootloader or firmware will start executing from flash memory.

Common Flashing Errors and Fixes

Error	Possible Cause	Fix
`Permission denied`	Insufficient privileges	Use `sudo` on Linux
`Cannot open port`	Wrong COM port or in use	Close serial terminal
`Timeout waiting for response`	Not in flash mode	Recheck BOOT mode
`Bad flash address`	Incorrect offset	Use correct memory address (e.g., 0x08000000)

Tips for Beginners

Always backup your working firmware before flashing.
Double-check the target chip and flash offsets.
Use verified cables and adapters.
If flash fails, try using lower baud rates.
Use LEDs or serial logs to confirm firmware execution.

Summary

Concept	Meaning
Bootloader	First code that runs and helps load firmware
Firmware	Main application running on the board
Flashing	Writing firmware or bootloader into memory
Tools	esptool, avrdude, STM32Cube, dd, etc.
Interfaces	USB, UART, JTAG, SWD

Verifying Peripheral Functionality

In embedded systems, peripherals are the external or internal devices connected to your microcontroller, such as LEDs, sensors, UART, SPI, I2C, ADC, etc. After powering up your board and flashing the firmware, the next step is to verify whether these peripherals are working correctly.

This guide will walk you through what peripheral verification means, why it’s important, and how to do it step by step.

What Are Peripherals?

Peripherals are the hardware modules that interact with the microcontroller to provide input/output capabilities. They can be:

Type	Examples
Internal	GPIO, ADC, PWM, Timers, UART
External	Sensors, Displays, EEPROM, Motors

These peripherals allow your embedded system to sense, communicate, and control the environment.

Why Is Peripheral Verification Important?

Verifying peripherals ensures:

Your firmware and drivers are working as expected
The hardware is properly connected and powered
There are no configuration mistakes in clock, I/O, or protocols
You can proceed confidently to higher-level development

Think of it like testing each muscle before a workout — you want to be sure everything is functioning.

General Verification Strategy

Here’s a standard approach to verifying any peripheral:

Power and Clock Check – Ensure supply voltage and clock signals are correct.
Pin Configuration – Confirm the correct pin mode (input/output/alternate).
Minimal Test Code – Write simple code to activate/test the peripheral.
Use Debugging Tools – Serial output, LEDs, oscilloscopes, logic analyzers.
Check Expected Behavior – Confirm against datasheets or known output.

Example Walkthroughs

Let’s walk through some basic examples of verifying common peripherals.

1. GPIO (General-Purpose I/O)

Goal: Blink an LED on a specific pin.

// Pseudo-code for GPIO output
pinMode(LED_PIN, OUTPUT);
while (1) {
  digitalWrite(LED_PIN, HIGH);
  delay(500);
  digitalWrite(LED_PIN, LOW);
  delay(500);
}

How to verify:

LED turns ON and OFF every 0.5 seconds
If it doesn’t, check the LED polarity, resistor, and pin mapping

2. UART (Serial Communication)

Goal: Print “Hello” over UART to serial monitor.

// Pseudo-code
UART_Init(9600);
UART_Send("Hello from UART!\r\n");

How to verify:

Open a serial monitor (like PuTTY or Arduino Serial Monitor)
Set the correct baud rate and COM port
See if the message appears

Troubleshooting:

Check RX/TX wiring (they are often crossed)
Ensure baud rate matches on both ends

3. I2C Communication (e.g., with an OLED or sensor)

Goal: Communicate with an I2C device like a temperature sensor.

I2C_Start();
I2C_Write(DEVICE_ADDR);
I2C_Write(REGISTER_ADDR);
data = I2C_Read();

How to verify:

Use an I2C scanner to detect the device address
Read data and print it over UART
Use a logic analyzer to capture I2C waveform

4. ADC (Analog-to-Digital Converter)

Goal: Read analog voltage on a pin and convert to digital value.

adc_value = ADC_Read(ANALOG_PIN);
voltage = (adc_value * VREF) / 1023.0;

How to verify:

Connect a known voltage (e.g., from a potentiometer)
Print the ADC result over UART
Compare expected vs. actual voltage

5. PWM (Pulse Width Modulation)

Goal: Control the brightness of an LED or motor speed.

PWM_SetDutyCycle(LED_PIN, 50); // 50% brightness

How to verify:

LED brightness should be dimmer at lower duty cycles
Use an oscilloscope to check PWM waveform

Debugging Tips for Peripheral Validation

Issue	Possible Cause	Fix
No output from UART	Wrong baud rate or TX/RX swap	Check cable, baud rate, and wiring
Sensor not responding	Wrong I2C address	Scan I2C bus
LED not blinking	Wrong pin or GPIO config	Check circuit and code
ADC value stuck	Floating analog input	Use a known voltage or resistor divider
PWM not visible	Wrong frequency or timer setup	Use an oscilloscope

Tools That Help

Tool	Use
Serial Monitor	Print debug messages
Multimeter	Measure voltage and signal
Oscilloscope	See analog or digital waveforms
Logic Analyzer	Debug I2C/SPI/UART buses
LEDs	Quick visual indicators

Best Practices

Test one peripheral at a time
Use bare minimum code for verification
Enable debug logs or serial prints
Validate hardware wiring visually
Use datasheets and reference manuals to confirm register settings

Connectivity Tests (USB, Ethernet, CAN)

In embedded systems, connectivity is how your device communicates with the outside world. Whether it’s a USB interface, a network via Ethernet, or real-time communication over CAN, verifying these connections is a crucial step before full application development.

This tutorial walks you through how to test USB, Ethernet, and CAN connections in a simple, step-by-step way.

Why Connectivity Testing Matters

Before you start sending data or building protocols, you need to ensure:

Hardware is connected correctly
Firmware drivers are working
Communication is happening reliably
No electrical or configuration issues exist

Think of this as a “ping” to test the health of your communication channels.

What You’ll Need

Development board (e.g., STM32, ESP32, Arduino with CAN module, etc.)
USB cable, Ethernet cable, or CAN transceivers
A host PC or second device
Serial monitor or debugging interface
Logic analyzer or oscilloscope (optional but helpful)

Section 1: USB Connectivity Test

USB can be used for:

Serial communication (CDC)
Mass storage
HID (e.g., keyboards/mice)

Step-by-Step USB Serial Test (CDC)

Connect your board via USB
- Use a USB cable with data lines (not just charging).
Write simple USB serial code // Example: Send a message via USB serial printf("USB Connected!\r\n");
Open a Serial Monitor
- Use tools like Arduino IDE Serial Monitor, PuTTY, or Tera Term.
- Set the correct COM port and baud rate.
Expected Result
- You should see "USB Connected!" message.
- If not:
  - Try another cable.
  - Check USB driver installation on PC.
  - Verify board power and enumeration.

Bonus Tip: Check Device Manager (Windows) or `lsusb` (Linux) to see if the USB device is recognized.

Section 2: Ethernet Connectivity Test

Ethernet is often used for network access, web servers, or IoT communication.

Step-by-Step Ping Test

Connect an Ethernet cable
- From board to router/switch or directly to PC.
Configure a static IP in firmware IPAddress ip(192, 168, 1, 50); // For Arduino-style code Ethernet.begin(mac, ip);
Add a blinking LED or serial print to show successful IP setup
From your PC, open Terminal and type: ping 192.168.1.50
Expected Result
- You get replies from the board’s IP.
- If not:
  - Check the IP address range.
  - Confirm the cable and LEDs near the Ethernet port.
  - Make sure the board has PHY and Ethernet drivers enabled.

Section 3: CAN Bus Connectivity Test

CAN (Controller Area Network) is used in automotive, industrial, and robotic systems for real-time communication.

Prerequisites

CAN transceiver (e.g., MCP2551, TJA1050)
Two CAN-capable boards or a board + USB-to-CAN dongle
Terminating resistors (120Ω at each end of the CAN bus)

Step-by-Step CAN Test

Wire CAN_H and CAN_L
- Connect both devices’ CAN_H to CAN_H and CAN_L to CAN_L.
- Add 120Ω resistors at both ends of the bus.
Initialize CAN peripheral in firmware CAN.begin(500E3); // 500 kbps
Send a test CAN frame CAN.send(0x123, data, len); // ID = 0x123
Receive on the other device if (CAN.available()) { CAN.read(); // Should get ID = 0x123 }
Expected Result
- The second device should receive the same CAN ID and data.
- Use LEDs or serial print to confirm reception.

Bonus Tip:

Use tools like CANalyzer, CAN-utils, or oscilloscope to monitor CAN frames and waveforms.

Troubleshooting Quick Guide

Problem	Possible Cause	Fix
USB not detected	Faulty cable or no data lines	Use a known good USB cable
No serial data	Wrong baud rate	Match PC and board baud
Ethernet ping fails	Wrong IP or DHCP issue	Use static IP; check cable
CAN no data	Missing termination	Add 120Ω resistors
CAN error frames	Speed mismatch or wiring	Ensure both nodes use same bitrate

Summary Table

Interface Testing (UART, I2C, SPI, GPIO)

In embedded systems, interfaces are how microcontrollers talk to other devices—sensors, memory, displays, or even other microcontrollers. This tutorial walks you through basic testing techniques for:

🟡 UART (Universal Asynchronous Receiver Transmitter)
🔵 I2C (Inter-Integrated Circuit)
🟢 SPI (Serial Peripheral Interface)
🔴 GPIO (General Purpose Input/Output)

Whether you’re using Arduino, STM32, ESP32, or another board, the concepts are mostly the same.

What You Need

A microcontroller development board (Arduino, STM32, ESP32, etc.)
Jumper wires
A PC with a USB interface
Optionally: Logic analyzer or multimeter
Peripheral modules (like I2C/SPI sensors)

1. UART Interface Testing

UART is a serial communication protocol used for debugging and talking to PCs or other UART devices.

Objective:

Send and receive serial data.

Setup:

Connect USB to your board.
Open Serial Monitor (Arduino IDE, Tera Term, PuTTY, etc.).

Sample Code (Arduino):

void setup() {
  Serial.begin(9600); // Start UART at 9600 baud
  Serial.println("UART Test Started");
}

void loop() {
  if (Serial.available()) {
    char ch = Serial.read();
    Serial.print("Received: ");
    Serial.println(ch);
  }
}

Expected Result:

Type in the serial monitor → you should see what you typed echoed back.

2. I2C Interface Testing

I2C is used for connecting multiple peripherals (sensors, RTC, EEPROM) with just 2 wires: SDA and SCL.

Objective:

Detect if the I2C device is responding.

Setup:

Connect I2C device’s SDA/SCL to the board.
Pull-up resistors (4.7kΩ) might be needed.
Use a scanner sketch or tool.

I2C Scanner Code (Arduino):

#include <Wire.h>

void setup() {
  Wire.begin();
  Serial.begin(9600);
  Serial.println("I2C Scanner Running...");
}

void loop() {
  for (byte addr = 1; addr < 127; addr++) {
    Wire.beginTransmission(addr);
    if (Wire.endTransmission() == 0) {
      Serial.print("I2C device found at 0x");
      Serial.println(addr, HEX);
    }
  }
  delay(3000);
}

Expected Result:

It prints detected I2C address(es). If nothing is found:

Check wiring.
Make sure the device is powered.
Add pull-up resistors if missing.

3. SPI Interface Testing

SPI is a high-speed protocol used with displays, flash memory, SD cards, etc.

Objective:

Send data to an SPI device and check response.

Common Pins:

MOSI: Master Out Slave In
MISO: Master In Slave Out
SCK: Clock
CS: Chip Select

Sample SPI Loopback Test (Connect MISO to MOSI):

#include <SPI.h>

void setup() {
  Serial.begin(9600);
  SPI.begin();
  pinMode(10, OUTPUT); // CS pin
  digitalWrite(10, LOW);

  byte sent = 0x55;
  byte received = SPI.transfer(sent);
  Serial.print("Sent: ");
  Serial.print(sent, HEX);
  Serial.print(" | Received: ");
  Serial.println(received, HEX);
}

void loop() {}

Expected Result:

If MISO and MOSI are looped, received data will match sent data.

4. GPIO Interface Testing

GPIO lets you control and read pins directly. You can:

Blink an LED
Read a button press
Toggle a pin high/low

Output GPIO Test:

void setup() {
  pinMode(13, OUTPUT); // Built-in LED on most boards
}

void loop() {
  digitalWrite(13, HIGH); // LED ON
  delay(500);
  digitalWrite(13, LOW); // LED OFF
  delay(500);
}

Input GPIO Test:

Connect a button between pin and GND.

void setup() {
  pinMode(2, INPUT_PULLUP);
  Serial.begin(9600);
}

void loop() {
  if (digitalRead(2) == LOW) {
    Serial.println("Button Pressed");
  }
}

Expected Result:

LED blinks in output test, and serial monitor prints “Button Pressed” in input test.

Tools You Can Use

Tool	Use
Serial Monitor	UART testing
I2C Scanner	Check device addresses
Logic Analyzer	View waveforms (I2C/SPI)
Multimeter	Check voltage on GPIO pins
Oscilloscope	Signal integrity and timing

Common Debug Tips

Issue	Possible Fix
No UART output	Wrong baud rate or COM port
No I2C device	Bad wiring or missing pull-ups
SPI fail	Check MISO/MOSI/SCK/CS wiring
GPIO not working	Check pinMode and wiring

Summary Table

Interface	Wires	Use Case	Test Tip
UART	TX, RX	Serial logs, debug	Use serial monitor
I2C	SDA, SCL	Sensors, EEPROM	Run I2C scanner
SPI	MOSI, MISO, SCK, CS	Displays, memory	Loopback MISO-MOSI
GPIO	Varies	LED, buttons	Blink/test logic

You can also Visit other tutorials of Embedded Prep

Special thanks to @mr-raj for contributing to this article on EmbeddedPrep

Master Power-On Checks and Voltage Rails Beginner’s Guide 2025

What Are Voltage Rails?

Common Voltage Rails:

Why Power-On Checks Matter

Step-by-Step Power-On Checks

1. Visual Inspection

2. Continuity Test (Pre-Power)

3. Apply Power through a Current-Limited Supply

4. Check All Voltage Rails

5. Observe Power-On Sequence (Advanced)

6. Check for Heat and Behavior

Tools You’ll Need

Bonus: Tips for Clean Power Design

Summary

Clock Signal Verification

What is a Clock Signal?

Why Clock Signal Verification is Important

When to Verify Clock Signals

Tools for Clock Signal Verification

Step-by-Step Clock Signal Verification

1. Visual Inspection First

2. Check Power to Oscillator

3. Use an Oscilloscope to Probe Clock Pins

4. Measure Frequency and Duty Cycle

5. Check Clock Enable Pins and Register Settings

6. Verify Internal Clock Output (If Available)

Common Clock Issues

Tips for Reliable Clock Design

Summary

Reset Circuit Validation

What is a Reset Circuit?

Types of Reset Sources:

Why Validate the Reset Circuit?

Components in a Reset Circuit

How to Perform Reset Circuit Validation – Step-by-Step

Step 1: Visual Inspection

Step 2: Check Default State on Power-Up

Step 3: Measure Reset Pulse Timing

Step 4: Test Manual Reset Button

Step 5: Validate Voltage Thresholds

Step 6: Simulate Watchdog Timeout (If Used)

Step 7: Check System Behavior After Reset

Common Reset Circuit Issues and Fixes

Tips for Reliable Reset Design

Summary

Quick Checklist:

Boot Logs & Serial Debugging

What Are Boot Logs?

What Is Serial Debugging?

Tools You Need

Wiring – Connecting Your Serial Debug Port

How to Set Up Serial Communication

What Do Boot Logs Look Like?

How to Read Boot Logs – Common Stages

1. Bootloader Phase (U-Boot or Barebox)

2. Kernel Phase

3. User Space Phase

Why Boot Logs Are Important

Common Boot Log Issues and What They Mean

Serial Debugging in Action – Use Cases

Tips for Effective Serial Debugging

Summary

Flashing Bootloaders and Firmware

What Is Firmware?

What Is a Bootloader?

What Does “Flashing” Mean?

What You Need to Flash

Flashing: Step-by-Step Overview

Step 1: Prepare the Binary File

Step 2: Set Boot Mode (if required)

Step 3: Connect to PC

Step 4: Use Flashing Tool

Arduino

ESP32 / ESP8266

STM32 (using STM32CubeProgrammer)

BeagleBone / Raspberry Pi (for SD card images)

Step 5: Verify Flashing

Step 6: Reset and Boot

Common Flashing Errors and Fixes

Tips for Beginners

Bonus Tip: Check Device Manager (Windows) or `lsusb` (Linux) to see if the USB device is recognized.
