    Interrupt handling in I2C communication: a beginner-friendly guide to I2C interrupts, ISR setup, non-blocking transfers, error handling, and practical .

    If you’ve ever used an I²C bus on a microcontroller, you know it’s convenient: just two lines (SDA and SCL) to talk to a bunch of sensors or peripherals. But when things get a little more complex—when you don’t want to block everything waiting for a transfer—interrupt handling in I2C communication becomes super useful. Let’s break it down together.

    What is I²C and why use interrupts?

    The I²C protocol (Inter-Integrated Circuit) uses a master and one or more slaves sharing SDA (data) and SCL (clock) lines. (Texas Instruments)

    By default, many I²C drivers operate in a blocking or polling mode: you tell the master “send this byte, wait until done”, and you sit there until it’s finished. But here’s the thing: if your microcontroller has other tasks (reading sensors, updating displays, handling UI…), you don’t want to stall everything waiting on I²C. That’s where interrupt handling in I2C communication comes in.

    With interrupt mode (or non-blocking mode) you initiate the I²C transfer and then go off and do other stuff. When the transfer completes (or an error happens) the hardware triggers an interrupt and your handler picks it up. This keeps things responsive. For example, on an ST STM32 microcontroller the HAL library supports “_IT” functions: HAL_I2C_Master_Transmit_IT() etc.

    So in plain terms: one, you set up the I²C peripheral to generate interrupts. Two, you write an interrupt service routine (ISR) that deals with completion or errors. Three, you let your main code keep doing whatever else it needs to.

    Why we talk about interrupt handling in I2C communication

    Because it gives you several real-world advantages:

    • Non-blocking transfers: You start a send or receive operation and go back to doing other tasks.
    • Better CPU efficiency: Instead of polling status flags in a tight loop, the CPU can rest or handle other processes until an interrupt fires.
    • Responsive systems: When a sensor or device signals new data, your system reacts instantly through interrupts.
    • Cleaner embedded design: Rather than using endless while(i2cBusy) waits, you use callbacks or ISRs (Interrupt Service Routines) for neat and efficient flow control.

    However — and this is important — interrupt handling in I2C communication also introduces new challenges. You must carefully manage synchronization, avoid race conditions, and ensure your ISRs remain short and efficient.

    If you want to understand how to analyze and debug I2C behavior more effectively, check out this detailed guide on I²C Debugging with Saleae Logic. It shows how to visualize signal timing, identify errors, and validate your interrupt-driven I2C transfers in real hardware.

    That’s why mastering interrupt handling in I2C communication isn’t just about enabling a feature — it’s about designing smooth, non-blocking, and reliable embedded systems that react in real time.ver—and this is important—you also need to handle it correctly. Mistakes in interrupt handling in I2C communication can lead to weird timing issues, bus lockups, missed data, or crashes.

    How to implement interrupt handling in I2C communication (step-by-step)

    Here’s a friendly walkthrough of how you’d do it on a typical microcontroller. We’ll keep it generic and simple.

    1. Configure the I²C peripheral for interrupt mode

    • Enable the I²C peripheral clock.
    • Configure the pins (SDA, SCL) with open-drain, pull-ups (as required by I²C) per spec. (Texas Instruments)
    • Set the I²C mode (master/slave), speed (standard, fast), 7-bit vs 10-bit addressing, etc.
    • Enable the I²C interrupts: typically “transfer complete”, “byte received”, “error” flags.
    • In the NVIC (or whatever MCU interrupt controller) enable the I²C IRQ and set its priority.

    2. Write your interrupt service routine (ISR)

    In the ISR you’ll examine the interrupt flags to see what happened: did a byte transmit complete? Did a receive finish? Was there a NACK or error/timeout?
    Because you’re doing interrupt handling in I2C communication, your job is to:

    • Clear the interrupt flag(s).
    • Handle the event: e.g., if transfer complete, set a flag/semaphore or call a callback indicating your buffer is ready.
    • If error, handle recovery: maybe reset the bus, reinit I²C, or log the error.
    • Optionally, trigger the next step in a multi-step sequence.

    3. Start the I²C transfer in non-blocking mode

    In your main code or a task you’ll do something like: “start I²C master transmit, interrupt mode”. Then you go off and do other things. When the ISR signals completion (via flag/semaphore or callback), you “know” the transfer is done.

    4. Use state machines or flags in main code

    Because you aren’t blocking, you’ll often have a little state machine: “idle → start transfer → waiting for interrupt → done → process data → idle”. This is good practice for interrupt handling in I2C communication because you keep things clear.

    5. Handle corner cases and errors

    • What if the bus is stuck (SCL or SDA low)?
    • What if a slave doesn’t ACK?
    • What if an interrupt happens but you missed it due to priority or nesting?
    • What if you call I²C routines inside another ISR? (That’s tricky) (Arduino Forum)

    Handling these robustly is part of proper interrupt handling in I2C communication.

    Example pseudo-code

    Here’s a simple pseudo code snippet to illustrate:

    volatile bool i2c_transfer_done = false;

    void I2C_IRQHandler(void) {
        if (I2C_GetFlag(TRANSFER_COMPLETE)) {
            I2C_ClearFlag(TRANSFER_COMPLETE);
            i2c_transfer_done = true;
        } else if (I2C_GetFlag(ERROR)) {
            I2C_ClearFlag(ERROR);
            handle_error();
        }
    }

    void start_i2c_transfer(uint8_t slaveAddr, uint8_t *data, size_t len) {
        i2c_transfer_done = false;
        I2C_Master_Transmit_IT(slaveAddr, data, len);
    }

    void main_loop(void) {
        // other tasks...
        start_i2c_transfer(0x50, tx_buffer, 10);

        while (!i2c_transfer_done) {
            // do other stuff (sensor read, UI update)
        }

        // now transfer done: process response
        process_data(rx_buffer);
    }


    In this example you see how interrupt handling in I2C communication keeps the code non-blocking and smooth.

    Common pitfalls in interrupt handling in I2C communication

    • Calling blocking I²C routines inside an ISR: you should not do that. The ISR should be short. (Arduino Forum)
    • Not clearing the interrupt flags properly → you get stuck.
    • Attempting I²C + other interrupts at same priority and ending in race conditions.
    • Forgetting to enable pull-ups or proper bus timing: even with interrupts, bus issues remain. (Interrupt)
    • Ignoring the fact that some I²C slave devices signal via extra IRQs (GPIOs) to the master, which then triggers an I²C read. That is still interrupt handling in I2C communication but involves external interrupts. (Interrupt)

    When should you use interrupt handling in I2C communication?

    • When your microcontroller has many tasks and you don’t want to stall everything waiting for I²C.
    • When you want to respond to asynchronous events (e.g., a sensor raises an alert) and then fetch data via I²C.
    • When you have multiple I²C transfers and want to chain them without blocking.
    • When you care about power efficiency: being able to sleep/wake for I²C transfers helps.

    If you only have a simple one-sensor read every second and nothing else happening, polling may suffice—but as soon as complexity grows, interrupt handling in I2C communication pays off.

    Link to your embedded projects

    Given your background (you’ve worked with microcontrollers, RTOS, drivers…) you can apply interrupt handling in I2C communication in your embedded systems:

    • On your STM32F4 (Cortex-M4) you might set up HAL or LL (low-level) I²C in interrupt mode.
    • On an RTOS like QNX, you might combine I²C interrupt events with your driver thread: ISR signals a message or event and your thread wakes to handle data.
    • You could build a non-blocking driver for an I²C sensor (e.g., temperature/humidity) that uses interrupt mode rather than blocking read, freeing your Cortex-M4 for other tasks.

    Advantages of Interrupt Handling in I2C Communication

    When you start using interrupt handling in I2C communication, you quickly notice how much smoother your embedded system becomes. Here are the biggest benefits:

    1. Non-blocking data transfers:
      Your CPU doesn’t have to sit and wait for I2C operations to finish. Once a transfer starts, the CPU can do other work until an interrupt notifies completion.
    2. Better CPU efficiency:
      Unlike polling, where the CPU repeatedly checks a flag, interrupt handling in I2C communication wakes the processor only when necessary — saving power and cycles.
    3. Real-time responsiveness:
      Ideal for sensors or asynchronous devices. If your I2C sensor sends new data suddenly, the interrupt triggers instantly, ensuring you never miss updates.
    4. Cleaner code design:
      Interrupts separate logic and event handling. Instead of using busy-wait loops like while(i2cBusy), you use Interrupt Service Routines (ISRs) and callbacks for elegant flow control.
    5. Scalable in RTOS environments:
      Works perfectly with real-time operating systems (FreeRTOS, QNX, etc.) where interrupt-driven I2C tasks can notify threads or queues efficiently.

    Want to learn how to debug I2C signals and verify interrupt triggers visually? Check out I²C Debugging with Saleae Logic — a great step-by-step resource.

    Disadvantages of Interrupt Handling in I2C Communication

    While the advantages are huge, interrupt handling in I2C communication also introduces some design challenges. Here’s what to watch out for:

    1. Complex debugging:
      Debugging interrupt-driven systems is tougher than polling. Timing issues or missed flags can cause data corruption or bus errors.
    2. ISR mistakes can hang the system:
      Long or blocking code inside the Interrupt Service Routine can freeze your microcontroller or delay critical events.
    3. Priority conflicts:
      If multiple interrupts fire at once (like UART + I2C), you must configure interrupt priorities carefully to avoid missed communication.
    4. Synchronization issues:
      Shared data between main tasks and ISRs can lead to race conditions if you don’t use proper locking or volatile variables.
    5. Platform-specific behavior:
      Each microcontroller family (STM32, ESP32, PIC, etc.) has slightly different I2C interrupt registers and vector names — meaning code isn’t always portable.

    Still, once you master these points, interrupt handling in I2C communication becomes one of the most reliable and efficient methods in embedded systems.

    C Code Example: Interrupt Handling in I2C Communication

    Here’s a simple example using an STM32-style approach (works similarly on many MCUs):

    #include "stm32f4xx.h"

    volatile uint8_t i2c_data_received = 0;

    void I2C1_EV_IRQHandler(void) {
        if (I2C_GetITStatus(I2C1, I2C_IT_RXNE)) { // Data received interrupt
            uint8_t data = I2C_ReceiveData(I2C1);
            i2c_data_received = data;
            I2C_ClearITPendingBit(I2C1, I2C_IT_RXNE);
        }

        if (I2C_GetITStatus(I2C1, I2C_IT_TXE)) { // Data transmit interrupt
            I2C_SendData(I2C1, 0x55); // Example data
            I2C_ClearITPendingBit(I2C1, I2C_IT_TXE);
        }
    }

    void I2C_Config(void) {
        I2C_InitTypeDef I2C_InitStruct;
        NVIC_InitTypeDef NVIC_InitStruct;

        // Enable I2C clock
        RCC_APB1PeriphClockCmd(RCC_APB1Periph_I2C1, ENABLE);

        // Configure I2C parameters
        I2C_InitStruct.I2C_ClockSpeed = 100000;
        I2C_InitStruct.I2C_Mode = I2C_Mode_I2C;
        I2C_InitStruct.I2C_DutyCycle = I2C_DutyCycle_2;
        I2C_InitStruct.I2C_OwnAddress1 = 0x30;
        I2C_InitStruct.I2C_Ack = I2C_Ack_Enable;
        I2C_InitStruct.I2C_AcknowledgedAddress = I2C_AcknowledgedAddress_7bit;
        I2C_Init(I2C1, &I2C_InitStruct);

        // Enable interrupts
        I2C_ITConfig(I2C1, I2C_IT_EVT | I2C_IT_ERR | I2C_IT_BUF, ENABLE);

        // NVIC configuration
        NVIC_InitStruct.NVIC_IRQChannel = I2C1_EV_IRQn;
        NVIC_InitStruct.NVIC_IRQChannelPreemptionPriority = 0;
        NVIC_InitStruct.NVIC_IRQChannelSubPriority = 0;
        NVIC_InitStruct.NVIC_IRQChannelCmd = ENABLE;
        NVIC_Init(&NVIC_InitStruct);

        // Enable I2C
        I2C_Cmd(I2C1, ENABLE);
    }

    int main(void) {
        I2C_Config();

        while (1) {
            // Main loop doing other tasks
            if (i2c_data_received) {
                // Process received data
                i2c_data_received = 0;
            }
        }
    }


    Explanation:

    • The I2C1_EV_IRQHandler() function acts as the Interrupt Service Routine (ISR).
    • The ISR handles both transmit (TXE) and receive (RXNE) events.
    • The main loop stays free for other operations — proving how interrupt handling in I2C communication enables non-blocking efficiency.

    Summary

    So to wrap it up: when you talk about interrupt handling in I2C communication, you mean using the I²C peripheral’s interrupt mode to handle data transfers in a non-blocking way. You configure the peripheral, write the ISR, start a transfer, and let the ISR notify your main code when it’s done. This gives a responsive, efficient embedded system. Done well, it avoids “while busy wait” code and keeps your system modular.

    Frequently Asked Questions (FAQ) About Interrupt Handling in I2C Communication

    1. What is interrupt handling in I2C communication?

    Interrupt handling in I2C communication is a technique where the microcontroller responds automatically when specific I2C events occur, such as data transfer completion or an error. Instead of continuously checking the bus status, the CPU gets interrupted only when needed, making the system faster and more efficient.

    2. Why is interrupt handling in I2C communication better than polling?

    In polling mode, the CPU constantly checks if the I2C bus is busy or free — which wastes time and processing power. With interrupt handling in I2C communication, the CPU can perform other tasks while waiting. When the I2C event occurs, the hardware triggers an interrupt, and the interrupt service routine (ISR) handles the task immediately. This improves responsiveness and overall CPU efficiency.

    3. How does interrupt handling in I2C communication work?

    It works through three steps:

    1. The microcontroller configures the I2C peripheral to generate interrupts on specific events.
    2. When an event (like transmit complete or receive complete) happens, the I2C hardware triggers an interrupt.
    3. The Interrupt Service Routine (ISR) executes automatically, processes the event, clears flags, and signals the main application to continue.
      This makes I2C communication non-blocking and reliable for multitasking embedded systems.

    4. What are the main advantages of interrupt handling in I2C communication?

    • Non-blocking data transfers
    • Better CPU utilization
    • Real-time response to sensor or peripheral signals
    • Cleaner software architecture using callbacks or ISRs
    • Easier integration with RTOS-based systems

    For a deeper look at I2C signal behavior and debugging, you can explore this related guide: I²C Debugging with Saleae Logic.

    5. What are common mistakes when using interrupt handling in I2C communication?

    • Writing long or blocking code inside the ISR
    • Forgetting to clear interrupt flags, which may cause repeated triggers
    • Using the same priority level as other critical interrupts
    • Calling I2C routines inside another interrupt context
      Avoiding these mistakes ensures smooth interrupt-driven I2C communication and prevents bus lock-ups.

    6. Can I use interrupt handling in I2C communication with RTOS?

    Yes, you can. Most real-time operating systems (like FreeRTOS or QNX) allow combining I2C interrupts with event flags, semaphores, or message queues. The ISR can signal an RTOS task that the I2C transfer is complete, keeping the system responsive and thread-safe.

    7. How do I test interrupt handling in I2C communication?

    You can test it by:

    • Using logic analyzers such as Saleae Logic to monitor I2C signals.
    • Checking if your main loop continues running during I2C transfers (non-blocking behavior).
    • Verifying ISR triggers correctly for start, stop, and error events.
      Tools like Saleae Logic Analyzer help visualize every bit of I2C traffic in real time.

    8. What microcontrollers support interrupt handling in I2C communication?

    Almost all modern MCUs — STM32, ESP32, Atmega, PIC, and ARM-based processors — support I2C interrupts. Each family has its own I2C interrupt registers and ISR naming conventions, but the concept remains the same: enable interrupts, write an ISR, and handle the event efficiently.

    9. What’s the difference between DMA and interrupt handling in I2C communication?

    Both reduce CPU load, but they work differently.

    • Interrupts: The CPU reacts when an event happens, ideal for smaller or infrequent data transfers.
    • DMA (Direct Memory Access): The hardware moves data automatically between memory and the I2C peripheral without CPU intervention, ideal for high-speed or large transfers.
      Some systems even combine both for maximum performance.

    10. How can beginners learn interrupt handling in I2C communication step-by-step?

    Start simple:

    1. Learn how basic I2C works (start, stop, ACK/NACK).
    2. Configure your I2C peripheral in blocking mode.
    3. Enable I2C interrupts and write a simple ISR.
    4. Test using an LED or UART message to confirm ISR execution.
    5. Debug your setup with tools like I²C Debugging with Saleae Logic.
      Once you master these steps, you can apply interrupt-driven I2C in any embedded project confidently.
  • Architecture of CAN Bus System | Master CAN Interview Questions (2026)

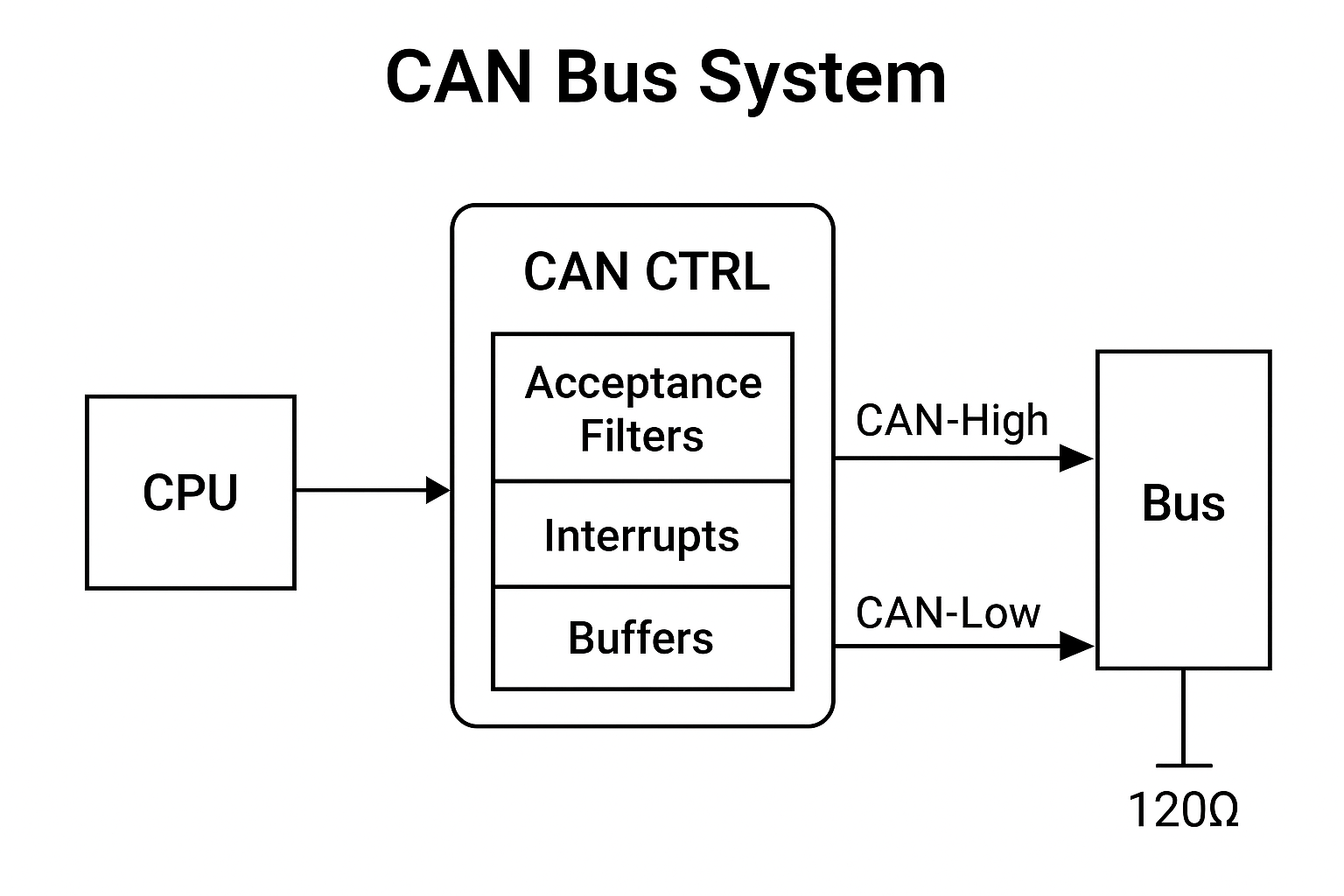

    Architecture of CAN Bus System: The Controller Area Network (CAN) bus system is a popular communication protocol widely used in automotive and industrial applications. It allows multiple electronic control units (ECUs) to communicate with each other efficiently over just two wires. In this article, we will explain the basic architecture of a CAN bus system in simple terms, making it easy for beginners to understand.

    Learn the basic architecture of a CAN bus system in this beginner-friendly guide. Understand key components like ECUs, CAN-High and CAN-Low wiring, message framing, and arbitration. Perfect for anyone starting with automotive or embedded communication protocols.

    What is a CAN Bus System?

    A CAN bus system is a robust vehicle bus standard designed to allow microcontrollers and devices to communicate without a host computer. It is especially useful in environments with high electrical noise, like cars, where reliable communication between multiple ECUs is essential.

    Key Components of CAN Bus Architecture

    1. Nodes (Electronic Control Units – ECUs)

    Each device or node in a CAN bus system contains:

    • A Microcontroller (MCU) that processes data.
    • A CAN controller that manages message framing, error detection, and protocol handling.
    • A CAN transceiver that converts data to and from the physical bus lines.

    Nodes can both send and receive messages on the bus, making CAN a multi-master system.

    2. Bus Lines: CAN-High and CAN-Low

    Communication takes place over two wires called CAN-High (CAN-H) and CAN-Low (CAN-L). These wires carry differential signals, meaning one wire carries the inverse of the other. This helps the system resist electrical noise and improves data integrity.

    3. Termination Resistors

    At both ends of the CAN bus, 120-ohm resistors are connected to prevent signal reflections and ensure reliable communication.

    Layers in the Architecture of the CAN Bus

    CAN bus architecture follows international standards defined by ISO 11898. It primarily works on two layers of the OSI model:

    • Physical Layer (ISO 11898-2): Defines wiring, signal voltage levels, and data rates. The twisted pair of CAN-H and CAN-L cables operate at speeds up to 1 Mbps (Classical CAN) or higher in CAN FD.
    • Data Link Layer (ISO 11898-1): Handles message framing, arbitration (which node gets to transmit when multiple nodes start transmitting simultaneously), error detection, and message acknowledgment.

    How CAN Bus Communication Works

    • Message Framing:
      Messages, or frames, consist of an identifier, data length, data payload (up to 8 bytes in Classical CAN), CRC for error checking, and control bits.
    • Arbitration:
      When multiple nodes send messages simultaneously, the one with the highest priority (lowest identifier number) wins the bus without data loss. This process is called arbitration.
    • Error Handling:
      CAN automatically detects errors and retransmits faulty messages, ensuring reliable communication.

    CAN Bus Physical Design and Topology

    The standard CAN bus uses a linear topology, where all nodes are connected along a single pair of wires with termination resistors at each end. This layout reduces reflections and interference.

    CAN Protocol Block Diagram — Overview

    The CAN bus follows a multi-master bus architecture, which means that any node (or ECU) connected to the bus can send or receive messages at any time. It also has built-in error handling to keep communication reliable.

    The main part of the CAN system is called the CAN core. This core acts like a memory-mapped device to the host processor and is responsible for sending and receiving CAN messages (called frames). It can be integrated easily with the host using standard interfaces like APB (Advanced Peripheral Bus) or AHB-Lite (Advanced High-performance Bus Lite), depending on performance and power needs.

    Key Parts Inside the CAN Core

    • Acceptance Filters: These help the system decide which messages should be accepted or ignored, making sure the ECU only processes relevant data.
    • Interrupts: Programmable signals to alert the processor about new messages or errors.
    • Buffers: Memory areas for storing messages before sending or after receiving.
      • There are two types of transmit buffers:
        • Primary Transmission Buffer (PTB): Holds high-priority messages.
        • Secondary Transmission Buffer (STB): Stores lower-priority messages.
      • Buffers work in a First-In-First-Out (FIFO) manner in priority mode.

    CAN Bus Layered Architecture

    The CAN communication protocol is defined by the ISO 11898 standard and has two main layers:

    1. Data Link Layer:
      This layer manages how data is sent between nodes, error checking, and message prioritization. It has two sublayers:
      • MAC (Medium Access Control): Controls which node can use the bus at a given time and handles framing and error detection.
      • LLC (Logical Link Control): Handles flow control, error recovery, and acceptance filtering.
    2. Physical Layer:
      This layer defines how the data is physically transmitted over the wires — including voltage levels, timing, and connectors. It consists of:
      • PCS (Physical Coding Sublayer): Encodes and decodes the bits on the bus.
      • PMA (Physical Medium Attachment): Handles framing and synchronization of bits.
      • PMD (Physical Medium Dependent): Deals with actual transmission and reception of bits on the wire.
      • MDI (Medium Dependent Interface): The physical connection to the network medium (cables).

    How CAN Bus Works — Data Transmission and Arbitration

    • CAN Frames:
      Data is sent in packets called frames. Each frame includes a unique identifier (priority), control bits, data payload, and error-checking codes.
    • Multi-Master and Arbitration:
      Multiple nodes can try to send data at the same time. To avoid collisions, CAN uses arbitration — a method that prioritizes messages with lower identifier numbers. The node with the highest priority continues to send, while others wait.
    • Bit Monitoring:
      While sending data, each node listens to the bus to make sure the bit they sent matches what is on the bus. If not, it means another node has a higher priority message, so the lower priority node stops transmitting.

    Example of Arbitration in the Architecture of the CAN Bus

    Imagine two ECUs want to send messages simultaneously:

    • ECU 1 has an identifier 0x234
    • ECU 2 has an identifier 0x352

    CAN uses wired-AND logic, meaning a dominant bit (0) overrides a recessive bit (1). When both ECUs transmit the third bit, ECU 1 sends 0 and ECU 2 sends 1. The bus reads 0 (dominant). ECU 2 detects the difference and stops transmitting, letting ECU 1 continue because it has higher priority.

    Standard CAN Frame Format

    Here’s what a typical CAN message frame looks like (in the standard 11-bit format):

    FieldDescription
    SOF (Start of Frame)Indicates the beginning of a message (1 bit)
    IdentifierDefines message priority (11 bits)
    RTR (Remote Transmission Request)Distinguishes between data and remote frames (1 bit)
    Control FieldContains user-specified flags
    IDE (Identifier Extension)Indicates if frame is standard (11-bit) or extended (29-bit)
    DLC (Data Length Code)Specifies number of data bytes (4 bits)
    Data FieldContains up to 8 bytes of actual data
    CRC (Cyclic Redundancy Check)Error-checking code (15 bits)
    ACK (Acknowledgement)Confirms correct reception (2 bits)
    EoF (End of Frame)Marks the end of the message (7 bits)

    Summary Architecture of the CAN Bus

    CAN Bus ElementDescription
    Nodes (ECUs)Devices with MCU, CAN controller, and transceiver
    CAN-High and CAN-LowTwisted pair differential signaling wires
    Termination Resistors120 Ω resistors at bus ends to prevent reflections
    Physical Layer (ISO 11898-2)Defines wiring and signaling specifications
    Data Link Layer (ISO 11898-1)Manages message framing, arbitration, and error handling
    ArbitrationPriority-based bus access control

    Conclusion

    The CAN bus system is a simple yet powerful communication protocol enabling multiple devices to communicate over a shared two-wire bus efficiently. Its architecture combines robust physical wiring, standardized messaging, and smart arbitration techniques to ensure data integrity in noisy environments like vehicles. Understanding its basic components and working principle is essential for anyone diving into embedded systems or automotive electronics.

    1. What is the CAN bus system?

    The CAN (Controller Area Network) bus system is a robust communication protocol used primarily in automotive and industrial applications to allow microcontrollers and devices to communicate with each other without a host computer. It enables multiple nodes to share data efficiently over a single two-wire bus.

    2. How is the architecture of a CAN bus system structured?

    The CAN bus architecture consists of several nodes connected through a twisted pair cable. Each node contains a CAN controller and a transceiver. The controller manages data framing, error checking, and message filtering, while the transceiver converts the controller’s digital signals to differential signals for the bus.

    3. What are the main components of a CAN node?

    A typical CAN node has three main parts: the microcontroller (which runs the application), the CAN controller (which handles CAN protocol functions), and the CAN transceiver (which interfaces with the physical bus).

    4. What type of bus topology does CAN use?

    CAN uses a multi-master, broadcast communication bus topology. This means any node can start transmitting data when the bus is free, and messages are broadcast to all nodes simultaneously.

    5. How does CAN handle message priority?

    CAN uses message identifiers to determine priority. Lower numerical values of identifiers have higher priority on the bus, allowing critical messages to get transmitted first during bus arbitration.

    6. What is bus arbitration in CAN?

    Bus arbitration is the process by which multiple nodes attempt to transmit data simultaneously. CAN uses a nondestructive arbitration method based on message priority, ensuring the highest priority message gains bus access without data loss.

    7. How does CAN ensure data integrity and error handling?

    CAN includes several error detection mechanisms such as CRC (Cyclic Redundancy Check), bit stuffing, acknowledgment checks, and error flags. When an error is detected, nodes retransmit messages to maintain data reliability.

    8. Why is CAN preferred in automotive systems?

    CAN is highly reliable, efficient, and cost-effective. It supports real-time communication with robust error handling and allows many electronic control units (ECUs) to communicate over a simple two-wire bus, making it ideal for automotive applications.

    9. Can CAN bus systems support long distances and high speeds?

    CAN supports data rates up to 1 Mbps and bus lengths typically up to 40 meters at the highest speed. For longer distances, the speed is reduced to maintain signal integrity.

    10. What is the difference between CAN 2.0A and CAN 2.0B?

    CAN 2.0A supports standard frames with 11-bit identifiers, whereas CAN 2.0B supports extended frames with 29-bit identifiers, allowing for more message identifiers and better flexibility.
  • What is Bit Stuffing in CAN Bus Communication? | Master CAN Interview Questions (2026)

    Bit Stuffing in CAN (Controller Area Network) is a technique used to ensure reliable data transmission by inserting extra bits into the data stream. This prevents long sequences of identical bits, helping maintain synchronization between sender and receiver. In this article, we explain what bit stuffing is, why it’s essential in CAN communication, and how it works with real-world examples, making it easy for beginners and professionals to understand.

    Introduction – Bit Stuffing in CAN Bus

    If you’ve ever worked with CAN (Controller Area Network) bus communication, you may have come across the term bit stuffing. At first, it might sound like some tricky technical jargon, but in reality, it’s a clever way to keep communication smooth, synchronized, and error-free.

    In this article, we’ll break down what bit stuffing is, why it’s essential in CAN communication, and how it works — in plain, beginner-friendly language.

    1. What Is Bit Stuffing?

    Bit stuffing is a technique used in CAN communication where a complementary bit is inserted into the data stream after five consecutive identical bits.

    • If there are five 1s in a row → insert a 0.
    • If there are five 0s in a row → insert a 1.

    This happens automatically:

    • Transmitter: Adds the stuffed bit.
    • Receiver: Detects and removes it before processing the data.

    📌 Think of it like this:
    If a teacher is reading a long sentence without pauses, students might lose track. A small pause (bit stuffing) ensures everyone stays in sync.

    2. Why Is Bit Stuffing Used in CAN Bus?

    a) Clock Synchronization

    CAN is asynchronous, meaning it doesn’t send a separate clock signal.

    • Receivers synchronize their internal clocks by detecting changes (edges) in the signal.
    • If there are too many identical bits in a row, there are no edges, and synchronization is lost.
    • Bit stuffing ensures enough transitions for accurate timing.

    b) Preventing False Frame Detection

    Some bit patterns (like a long string of 0s or 1s) are used for special markers in CAN, such as Start of Frame (SOF) or End of Frame (EOF).

    • Without bit stuffing, these patterns might accidentally appear inside data.
    • Bit stuffing prevents that by breaking long identical sequences.

    c) Error Detection

    If the receiver finds more than 5 identical bits in a row without a stuffed bit, it knows an error occurred and raises a bit stuffing error.
    This is a built-in safety check.

    3. How Bit Stuffing in CAN Bus Works: Step-by-Step Example

    Original Data (before stuffing):

    1111101111100


    After Bit Stuffing:

    111110**0**111110**0**0


    Here’s what happened:

    1. Found five 1s → inserted 0.
    2. Found another five 1s → inserted another 0.

    The receiver will remove these inserted bits before processing.

    4. Bit Stuffing in Error Frames

    In CAN, bit stuffing is not applied to certain special fields like:

    • Stuff count fields
    • CRC delimiter
    • ACK delimiter
    • End of Frame (EOF)

    This prevents unnecessary changes to fixed-format parts of a message.

    Also, if bit stuffing is wrong (extra or missing stuffed bit), it triggers a stuff error, and the CAN error handling mechanism retransmits the frame.

    5. Key Takeaways for Beginners: Understanding Bit Stuffing in CAN Bus

    ✅ Bit stuffing inserts an opposite bit after five identical bits.
    ✅ It keeps CAN communication synchronized and error-free.
    ✅ Receivers automatically remove stuffed bits before processing.
    ✅ If stuffing is missing or wrong, CAN flags an error.

    Advantages of Bit Stuffing in CAN Bus

    1. Maintains Synchronization – Prevents loss of sync between transmitter and receiver by avoiding long sequences of identical bits.
    2. Error Detection Support – Helps identify frame errors if the stuffing rule is violated.
    3. Protocol Simplicity – Automatically handled by CAN controllers, requiring no manual intervention from developers.
    4. Works for Variable Data Patterns – Effective regardless of the actual message content.

    Disadvantages of Bit Stuffing in CAN Bus

    1. Increases Data Overhead – Extra stuffed bits make the transmitted frame longer.
    2. Slight Latency Impact – Additional bits increase transmission time, especially in large frames.
    3. Higher Bandwidth Usage – More bits mean slightly higher bus load, reducing available bandwidth for other messages.
    4. Complexity in Manual Analysis – Raw bitstreams are harder to read without decoding tools due to inserted bits.

    Real-Time Use Cases of Bit Stuffing

    • Automotive ECUs – Engine control units, ABS systems, and airbags rely on CAN bit stuffing for accurate high-speed data transfer.
    • Industrial Automation – PLCs and robotic arms use CAN for sensor and actuator communication with bit stuffing ensuring reliability.
    • Medical Equipment – Infusion pumps and diagnostic machines use CAN for safe and synchronized data exchange.
    • Aerospace Systems – Flight control and monitoring systems depend on CAN with bit stuffing to maintain data integrity in noisy environments.

    FAQs of Bit Stuffing in CAN

    Q1: Is bit stuffing the same for all protocols?

    Ans: No. While many protocols use bit stuffing, the rules (like the number of identical bits allowed) may differ.

    Q2: Does bit stuffing change the original message?

    Ans: No. Stuffed bits are removed before the data is processed, so the original message stays the same.

    Q3: Who handles bit stuffing in CAN — hardware or software?

    Ans: The CAN controller hardware automatically handles stuffing and destuffing.

    Conclusion

    Bit stuffing is a small yet powerful feature of CAN bus communication. It keeps devices in sync, prevents accidental message boundaries, and helps detect errors — all without affecting your actual data.

    So the next time you see a CAN message, remember: somewhere inside, bit stuffing is working quietly to keep the conversation going smoothly.

  • Master CAN Bus Interview Questions 2026

    CAN Bus Interview Questions : If you are preparing for an embedded systems or automotive interview, chances are you’ll face questions on CAN bus, a widely-used communication protocol in vehicles. This article simplifies CAN bus interview questions for beginners and helps you understand the key concepts, architecture, message handling, and real-world applications in a friendly tone.

    Whether you’re a student, fresher, or experienced developer brushing up for an interview, this guide is a great place to start.

    CAN Bus Interview Questions

    CAN Bus Interview Questions
    CAN Bus Interview Questions

    Basic Concepts

    1. What does CAN stand for in CAN bus?
    2. What is CAN bus and why is it used in automotive systems?
    3. Describe the basic architecture of a CAN bus system.
    4. What are the primary components of a CAN bus network?
    5. Explain the difference between a CAN node and a CAN message.

    Message Format and Communication

    1. Can you explain the message format used in CAN bus?
    2. What is the purpose of the CAN identifier field in a CAN message?
    3. Describe the difference between standard and extended CAN identifiers.
    4. How does CAN bus support prioritization of messages?
    5. Describe the process of arbitration in CAN bus communication.

    Data Transmission & Reliability

    1. How does CAN bus ensure message integrity and reliability?
    2. How does CAN bus handle message collisions?
    3. How does CAN bus handle error detection and error handling?
    4. What is bit stuffing, and why is it used in CAN bus communication?
    5. What is the maximum data transfer rate supported by CAN bus?

    Filtering, Speed, and Configuration

    1. Can you explain the concept of message filtering in CAN bus?
    2. How does CAN bus handle communication between nodes with different bit rates?
    3. How does CAN bus support both high-speed and low-speed communication within a vehicle?
    4. What factors should be considered when designing a CAN bus network?

    Hardware & Physical Layer

    1. Explain the significance of termination resistors in a CAN bus network.

    Applications & Real-World Use Cases

    1. What are the advantages of using CAN bus over other communication protocols in automotive applications?
    2. What are the advantages of using CAN bus in automotive applications?
    3. Describe a scenario where you would choose CAN bus over other communication protocols for a specific application.
    4. How does CAN bus contribute to the overall reliability and safety of automotive systems?
    5. Describe a scenario where you encountered a communication issue on a CAN bus and how you resolved it.

    Suggested Additional Questions (Optional for Advanced Interviews)

    1. What is the function of ACK slot in CAN message frame?
    2. What happens if both nodes on a CAN bus transmit messages simultaneously with the same priority?
    3. What tools can be used to debug or monitor CAN bus activity?
    4. Can you explain the role of CAN transceivers?
    5. What’s the difference between CAN, LIN, and FlexRay protocols?

    Frequently Asked Questions | CAN Bus Interview Questions

    1.What is the CAN bus used for?

    Answer: CAN (Controller Area Network) is used for communication between multiple electronic control units (ECUs) in vehicles and other embedded systems without needing a central host. It ensures fast, reliable, and real-time data exchange.

    2.Is knowledge of CAN protocol important for embedded system engineers?

    Answer: Yes. CAN is widely used in automotive and industrial systems, so understanding it is essential for embedded developers working with microcontrollers, ECUs, or automation.

    3.What are the most common topics asked in CAN bus interviews?

    Answer: Key topics include:

    • CAN architecture
    • Message format and identifiers
    • Arbitration and prioritization
    • Bit timing and error handling
    • Termination resistors and filtering

    4.What’s the difference between standard and extended CAN identifiers?

    Answer: Standard identifiers are 11-bit long, while extended identifiers are 29-bit long, offering more unique message IDs and supporting complex systems.

    5.How can I prepare for CAN bus interviews?

    Answer:

    • Understand how CAN works at both physical and protocol layers
    • Study message structure, arbitration, and filtering
    • Practice interpreting CAN frames using tools like CANalyzer, PCAN View, or BusMaster
    • Review real-world issues and troubleshooting scenarios

    6.Is CAN bus only used in automotive systems?

    Answer: No. While it started in automotive, it’s also used in industrial automation, robotics, aerospace, and medical devices due to its robustness and fault tolerance.

    7.What tools are used for working with CAN bus?

    Answer: Common tools include:

    • CANalyzer
    • CANoe
    • PCAN View
    • BusMaster (open-source)
    • Logic analyzers with CAN decoders

    8.How can I explain a real-world CAN issue in an interview?

    Answer: Be honest. For example, explain a scenario where a node failed due to missing termination or noise interference, how you diagnosed it using a CAN tool, and how you fixed it.

  • CAN Bus Message Filtering Explained | Master CAN Interview Questions (2026)

    CAN Bus Message Filtering : In a modern vehicle or embedded system, hundreds of sensors and controllers need to communicate with each other. This communication is handled efficiently by the CAN (Controller Area Network) bus. But with so many messages flowing through the network, how do devices know which messages are meant for them? That’s where CAN Bus Message Filtering comes into play.

    In this article, we’ll break down the concept of message filtering in CAN bus in a simple, beginner-friendly way.

    What is CAN Bus?

    The CAN bus is a robust communication protocol used in automobiles, industrial automation, and embedded systems. It allows multiple devices (called nodes) to communicate with each other using a shared bus line. Each message sent over the CAN bus has a unique identifier (ID) that represents its content or priority.

    What is Message Filtering in CAN Bus?

    Definition:

    CAN Bus Message Filtering is a method used by nodes to accept only specific messages from the network based on their identifiers. This helps each node ignore irrelevant data and process only the information it needs.

    Why is it Needed?

    • Reduces CPU workload.
    • Improves efficiency.
    • Prevents buffer overload.
    • Saves memory by storing only necessary messages.

    How Does Message Filtering Work?

    Each CAN controller (hardware or software) is equipped with filter registers and mask registers. Here’s how filtering is applied:

    1. Identifier Matching

    Every message on the CAN bus comes with an identifier. The receiving node checks this ID against its filter settings.

    2. Mask and Filter

    • A mask defines which bits of the identifier should be compared.
    • A filter holds the expected value for those bits.
      If the result matches, the message is accepted. Otherwise, it’s ignored.

    3. Example:

    Let’s say a node is only interested in messages with IDs between 0x100 and 0x1FF. It can be configured with:

    • Mask: 0x700
    • Filter: 0x100

    This way, only messages matching those patterns get through.

    Types of CAN Message Filtering

    ✅ Hardware Filtering:

    • Done by the CAN controller itself.
    • Fast and efficient.
    • Ideal for high-performance applications.

    ✅ Software Filtering:

    • Implemented in the microcontroller or processor.
    • More flexible but uses CPU cycles.

    Real-Life Use Case of CAN Message Filtering

    In a car, multiple Electronic Control Units (ECUs) share data over the CAN bus. For example:

    • The engine ECU may only want to read throttle and temperature messages.
    • The brake ECU may only need wheel speed and ABS-related data.

    By setting CAN bus message filters, each ECU receives only what it needs.

    Key Benefits of Message Filtering

    • 🔍 Focused communication: Nodes process only relevant data.
    • 🚀 Boosted performance: Less data to handle means faster response.
    • 🧠 Efficient memory use: Filters prevent unnecessary storage.
    • ⚙️ Simpler software logic: Only targeted data is considered.

    Frequently Asked Questions (FAQ) on CAN Bus Message Filtering

    Q1: What is CAN Bus Message Filtering?

    Answer:
    CAN Bus Message Filtering is a process where a CAN node accepts only specific messages from the CAN network based on their identifiers. This helps the node ignore irrelevant messages and focus on the ones it needs.

    Q2: Why is message filtering important in CAN communication?

    Answer:
    Message filtering is important because it:

    • Reduces CPU load
    • Saves memory
    • Improves performance
    • Prevents buffer overflow
      Without filtering, every node would need to process all messages, leading to inefficiencies.

    Q3: How does a CAN node decide which messages to accept?

    Answer:
    Each CAN node uses a combination of filter and mask registers to decide which message IDs to accept. The message’s identifier is compared with the filter settings, and if it matches, the message is accepted.

    Q4: What is the difference between mask and filter in CAN bus?

    Answer:

    • A mask specifies which bits of the incoming message ID to compare.
    • A filter holds the reference value to match against those bits.
      Together, they help define filtering rules for incoming CAN messages.

    Q5: What are the types of CAN message filtering?

    Answer:
    There are two main types:

    • Hardware filtering: Performed by the CAN controller, fast and efficient.
    • Software filtering: Done by the processor in code, more flexible but uses CPU resources.

    Q6: Can I filter extended (29-bit) CAN IDs?

    Answer:
    Yes. CAN controllers that support extended IDs (29-bit) can apply filtering to those as well. You just need to configure filters and masks accordingly for 29-bit identifiers.

    Q7: Do all microcontrollers support CAN message filtering?

    Answer:
    Most modern microcontrollers with built-in CAN controllers support message filtering. However, the number of filters available may vary between chips, so check your hardware datasheet.

    Q8: Can filtering be done in software only?

    Answer:
    Yes, software filtering can be implemented if the CAN controller passes all messages to the CPU. However, this is less efficient compared to hardware filtering and is generally used in low-traffic systems.

    Q9: Is CAN message filtering configurable during runtime?

    Answer:
    In many systems, yes. Filter and mask values can be updated during runtime, depending on the CAN controller and driver support. This is useful in dynamic systems that need to change behavior.

    Q10: Does message filtering affect CAN bus speed?

    Answer:
    Filtering itself doesn’t affect the CAN bus speed, but it improves the overall system efficiency by reducing the processing time and memory usage for each node.

    Conclusion

    CAN Bus Message Filtering is a critical feature that ensures reliable and efficient communication in embedded and automotive systems. By allowing nodes to selectively listen to the network, filtering helps maintain order in what would otherwise be a chaotic stream of data.

    Understanding this concept is essential for anyone working with CAN protocol or embedded systems development. Now that you’ve got the basics down, you can explore how to configure these filters in hardware or software in your next CAN project

  • CAN Interview Questions : Master Beginner-Friendly Tutorial [2026]

    CAN Interview Questions : Are you preparing for a career in embedded systems or automotive engineering? Dive into this comprehensive guide featuring the most important and beginner-friendly CAN Interview Questions and answers. Understand the fundamentals of the CAN protocol, including message frames, arbitration, error handling, bit stuffing, and CAN FD. Discover how CAN enables reliable communication between ECUs in vehicles and industrial systems. Packed with clear explanations and practical examples, this tutorial helps you build confidence and technical expertise to tackle real-world interview scenarios. Whether you’re an engineering student, a fresh graduate, or a working professional, mastering these CAN Interview Questions will give you a competitive edge in your next job interview.

    What is CAN Protocol?

    CAN (Controller Area Network) is a robust, multi-master serial communication protocol designed for reliable communication between electronic control units (ECUs) in vehicles and industrial systems.

    • Developed by: Bosch (1983)
    • Standardized as: ISO 11898
    • Uses: Automotive, industrial automation, medical devices

    Top CAN Interview Questions and Answers

    Below are common CAN interview questions with beginner-friendly explanations.

    1. What is the purpose of CAN protocol?

    The purpose of CAN is to allow multiple microcontrollers (ECUs) to communicate with each other without needing a host computer.

    • It enables reliable, fast, and cost-effective communication.
    • Used in cars for sharing data between engine, brakes, airbags, dashboard, etc.

    2. What are the main features of CAN protocol?

    • Multi-master capability (any node can start transmission if the bus is free)
    • Error detection and handling (robust error-checking mechanisms)
    • Priority-based message arbitration
    • Standard or extended identifiers (11-bit or 29-bit IDs)
    • Bitwise arbitration prevents data collision without data loss.

    3. What is meant by “multi-master” in CAN?

    • Any node (ECU) can start sending data when the bus is idle.
    • There’s no single master device controlling communication.

    This allows distributed systems where devices communicate freely and efficiently.

    4. Explain CAN message frame structure.

    A CAN data frame consists of:

    ✅ Start of Frame (SOF) – indicates start of transmission
    ✅ Identifier – priority of message (11 or 29 bits)
    ✅ Control Field – specifies data length
    ✅ Data Field – carries up to 8 bytes of data
    ✅ CRC – error checking
    ✅ ACK – acknowledgment slot
    ✅ End of Frame (EOF) – indicates end of message

    5. What is the difference between Standard and Extended CAN frame?

    FeatureStandard CANExtended CAN
    Identifier Bits11 bits29 bits
    UsageCommon in automotive applicationsUsed when more IDs needed
    Frame SizeSmallerSlightly longer

    6. What is bit stuffing in CAN protocol?

    Bit stuffing helps CAN maintain synchronization:

    • After five consecutive bits of same value, a complementary bit is inserted.
    • Example: if five “1”s in a row → insert a “0”.
    • Ensures proper clock recovery at the receiver.

    7. How does CAN handle message collisions?

    CAN uses bitwise arbitration:

    • Nodes transmit their ID bits one by one.
    • Dominant bit (0) wins over recessive bit (1).
    • Lower numerical ID = higher priority.
    • Losing node stops transmission and retries.

    Thus, no data collision happens, only a priority resolution.

    8. What is CAN bus speed?

    • Typically ranges from 10 kbps to 1 Mbps.
    • Higher speed → shorter bus length.
    • For automotive, 500 kbps or 1 Mbps is common.

    9. What are dominant and recessive bits in CAN?

    • Dominant bit (0): Logic low – overwrites recessive bits on the bus.
    • Recessive bit (1): Logic high – gets overwritten by dominant bits.

    Dominant bits win during arbitration.

    10. What is CANopen?

    • A higher-layer protocol built on top of CAN.
    • Used in industrial automation.
    • Defines device profiles, communication objects, and network management.

    11. How many nodes can be connected on a CAN bus?

    • Standard limit: Up to 112 nodes.
    • Depends on transceivers and bus loading.

    12. Explain error detection mechanisms in CAN.

    CAN offers robust error detection:

    ✅ Bit Error: Sent bit ≠ read bit.
    ✅ CRC Error: Checksum mismatch.
    ✅ Form Error: Incorrect fixed bits in frame.
    ✅ Stuff Error: Wrong bit stuffing.
    ✅ Acknowledgment Error: No ACK from receiver.

    Nodes automatically retransmit messages upon detecting errors.

    13. What is CAN FD?

    CAN FD = Flexible Data-rate CAN

    • Introduced to increase data rate and payload:
      • Up to 64 bytes data field (vs 8 bytes in classical CAN).
      • Higher transmission speed during data phase.

    Widely adopted in modern automotive systems.

    14. Name some tools used to analyze CAN traffic.

    ✅ CANalyzer
    ✅ CANoe
    ✅ PCAN-View
    ✅ BusMaster (open-source)
    ✅ Vector tools

    These tools help capture, monitor, and simulate CAN messages.

    15. How is CAN different from UART?

    FeatureCANUART
    Multi-masterYesNo
    Error handlingAdvancedBasic
    SpeedHigherLower
    TopologyBusPoint-to-point

    Practical CAN Interview Example

    Q: You’re designing a system with multiple ECUs on a CAN bus. How do you ensure high-priority messages like braking data get sent first?

    A: Assign braking messages a lower numerical CAN ID. Lower IDs win arbitration, so braking messages get higher priority on the bus.

    ✅ Quick Tips for CAN Interviews

    ✅ Understand frame structure and arbitration
    ✅ Be ready to explain dominant/recessive bits
    ✅ Know bit stuffing and error types
    ✅ Learn CAN FD basics
    ✅ Practice with CAN tools like CANalyzer

    Conclusion

    CAN protocol is essential knowledge for anyone working in embedded systems, automotive, or industrial automation. Understanding these beginner-level interview questions will help you feel confident and prepared for your next technical interview.

    Recommended Resources to Learn More About CAN Protocol and Tools

    You can also Visit other tutorials of Embedded Prep

    Special thanks to @mr-raj for contributing to this article on EmbeddedPrep

    Must-do interview question sets for Embedded Systems experts include :
